BA逆向资源与解包思路

前言

  • BA最新的游戏资源是在日服, 所以通常想获取需要: 安装安卓日服BA, 注册日服账号, 进入游戏, 才会动态拉取游戏所有资源, 总之很笨重繁琐
  • 我需要一个轻量的方法来获取最新的游戏美术资源: 直接从服务器按需获取资源

流程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
[
{
"Name": "assets-_mx-characters-koharu_original-_mxdependency_anim_assets_all_3786658315.bundle",
"Size": 5208436,
"IsPrologue": false,
"Crc": 3786658315,
"IsSplitDownload": false
},
{
"Name": "assets-_mx-characters-koharu_original-_mxdependency_assets_all_3546548379.bundle",
"Size": 536439,
"IsPrologue": false,
"Crc": 3546548379,
"IsSplitDownload": false
},
{
"Name": "assets-_mx-characters-koharu_original-_mxdependency_mat_assets_all_3814452055.bundle",
"Size": 4809,
"IsPrologue": false,
"Crc": 3814452055,
"IsSplitDownload": false
},
{
"Name": "assets-_mx-characters-koharu_original-_mxdependency_prefab_assets_all_3453201862.bundle",
"Size": 69441,
"IsPrologue": false,
"Crc": 3453201862,
"IsSplitDownload": false
},
{
"Name": "assets-_mx-characters-koharu_original-_mxdependency_psd_assets_all_478833476.bundle",
"Size": 346879,
"IsPrologue": false,
"Crc": 478833476,
"IsSplitDownload": false
},
{
"Name": "character-koharu_original-_mxload-2024-05-30_assets_all_629783588.bundle",
"Size": 90217,
"IsPrologue": false,
"Crc": 629783588,
"IsSplitDownload": false
},
]

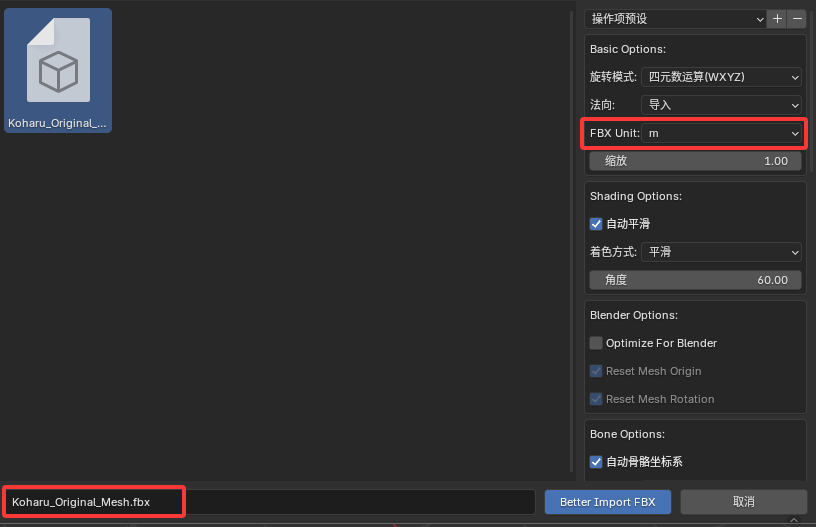

  • 最后把导出的fbx文件导入到blender测试下, 记得FBX Unit的单位要改为m, (默认值为cm)

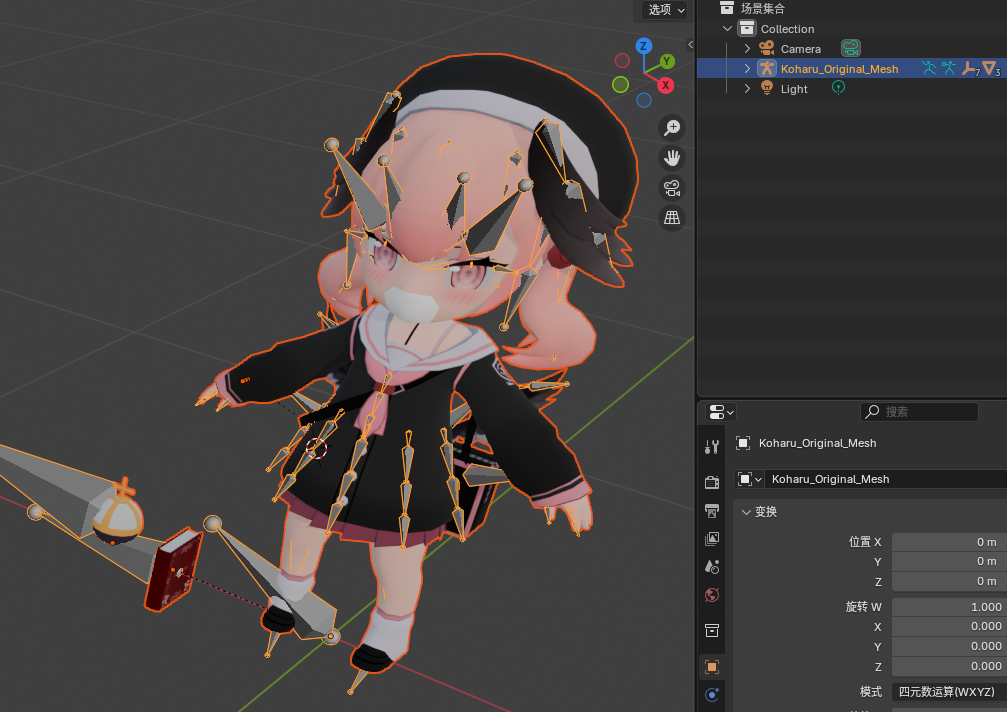

  • 效果如下, 完工


获取最新资源服务器地址流程

  1. 访问: https://prod-noticeindex.bluearchiveyostar.com/prod/index.json, 搜索LatestClientVersion, 看到对应的值为1.56, 这是最新的客户端版本
  2. 访问地址获取1.56版本的游戏客户端: https://d.apkpure.com/b/XAPK/com.YostarJP.BlueArchive?nc=arm64-v8a&sv=24&versionCode=56
  3. 解压apk, 到资源路径./assets/bin/Data下执行脚本, 脚本会打印服务器地址, 原理是通过UnityTool扫该目录下的所有AssetBundle来解析
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
# 打印资源服务器地址

import time
import base64
import json
from base64 import b64decode
import os

import UnityPy
from UnityPy.files.File import ObjectReader
from Crypto.Util.strxor import strxor
from xxhash import xxh32_intdigest


def calculate_hash(name: bytes | str) -> int:
"""Calculate a 32-bit hash using xxhash with UTF-8 encoding if needed."""
if isinstance(name, str):
name = name.encode("utf8")
return xxh32_intdigest(name)


def create_key(name: str, size: int = 8) -> bytes:
"""Create a random key based on a hashed name and a specific size."""
seed = calculate_hash(name)
return MersenneTwister(seed).next_bytes(size)


def xor(value: bytes, key: bytes) -> bytes:
"""XOR operation between two byte arrays."""
if len(value) == len(key):
return strxor(value, key)
if len(value) < len(key):
return strxor(value, key[: len(value)])
# Handle the case where the value is longer than the key
return b"".join(
strxor(value[i: i + len(key)], key)
for i in range(0, len(value) - len(key) + 1, len(key))
) + strxor(
value[len(value) - len(value) % len(key):], key[: len(value) % len(key)]
)


def convert_string(value: bytes | str, key: bytes = b"") -> str:
"""Decrypt or decode a base64 string or raw bytes, depending on the input."""
if not value:
return ""

try:
raw = b64decode(value)
if decoded := xor(raw, key).decode("utf16"):
return decoded
raise UnicodeError
except:
if isinstance(value, bytes):
return value.decode("utf8")

return ""


class MersenneTwister:
# Constants for the Mersenne Twister algorithm
N = 624
M = 397
MATRIX_A = 0x9908B0DF # Constant vector a
UPPER_MASK = 0x80000000 # Most significant w-r bits
LOWER_MASK = 0x7FFFFFFF # Least significant r bits

def __init__(self, seed: int | None = None) -> None:
if seed is None:
seed = int(time.time() * 1000) # Use current time in milliseconds as seed
self.mt = [0] * self.N # Create an array to store the state
self.mti = self.N + 1 # Initial value for mti
self.init_genrand(seed)

def init_genrand(self, seed: int) -> None:
"""Initializes the generator with a seed."""
self.mt[0] = seed & 0xFFFFFFFF # Seed is limited to 32 bits
for i in range(1, self.N):
self.mt[i] = (
1812433253 * (self.mt[i - 1] ^ (self.mt[i - 1] >> 30)) + i
) & 0xFFFFFFFF
self.mti = self.N

def _generate_numbers(self) -> None:
"""Generates N words at a time."""
for i in range(self.N - self.M):
y = (self.mt[i] & self.UPPER_MASK) | (self.mt[i + 1] & self.LOWER_MASK)
self.mt[i] = (
self.mt[i + self.M] ^ (y >> 1) ^ (self.MATRIX_A if y % 2 else 0)
)
for i in range(self.N - self.M, self.N - 1):
y = (self.mt[i] & self.UPPER_MASK) | (self.mt[i + 1] & self.LOWER_MASK)
self.mt[i] = (
self.mt[i + (self.M - self.N)]
^ (y >> 1)
^ (self.MATRIX_A if y % 2 else 0)
)
y = (self.mt[self.N - 1] & self.UPPER_MASK) | (self.mt[0] & self.LOWER_MASK)
self.mt[self.N - 1] = (
self.mt[self.M - 1] ^ (y >> 1) ^ (self.MATRIX_A if y % 2 else 0)
)
self.mti = 0

def genrand_int32(self) -> int:
"""Generates a random number on [0, 0xFFFFFFFF]-interval."""
if self.mti >= self.N:
self._generate_numbers()

y = self.mt[self.mti]
self.mti += 1

# Tempering transformation
y ^= y >> 11
y ^= (y << 7) & 0x9D2C5680
y ^= (y << 15) & 0xEFC60000
y ^= y >> 18

return y & 0xFFFFFFFF # Return 32-bit unsigned integer

def genrand_int31(self) -> int:
"""Generates a random number on [0, 0x7FFFFFFF]-interval."""
return self.genrand_int32() >> 1

def next_bytes(self, length: int) -> bytes:
"""Generates random bytes."""
return b"".join(
self.genrand_int31().to_bytes(4, "little", signed=False)
for _ in range(0, length, 4)
)[:length]


class UnityUtils:
@staticmethod
def search_unity_pack(
pack_path: str,
data_type: list | None = None,
data_name: list | None = None,
condition_connect: bool = False,
read_obj_anyway: bool = False,
) -> list[ObjectReader] | None:
data_list: list[ObjectReader] = []
type_passed = False
try:
env = UnityPy.load(pack_path)
for obj in env.objects:
if data_type and obj.type.name in data_type:
if condition_connect:
type_passed = True
else:
data_list.append(obj)
if read_obj_anyway or type_passed:
data = obj.read()
if data_name and data.m_Name in data_name:
if not (condition_connect or type_passed):
continue
data_list.append(obj)
except:
pass
return data_list


def decode_server_url(data: bytes) -> str:
ciphers = {
"ServerInfoDataUrl": "X04YXBFqd3ZpTg9cKmpvdmpOElwnamB2eE4cXDZqc3ZgTg==",
"DefaultConnectionGroup": "tSrfb7xhQRKEKtZvrmFjEp4q1G+0YUUSkirOb7NhTxKfKv1vqGFPEoQqym8=",
"SkipTutorial": "8AOaQvLC5wj3A4RC78L4CNEDmEL6wvsI",
"Language": "wL4EWsDv8QX5vgRaye/zBQ==",
}
b64_data = base64.b64encode(data).decode()
json_str = convert_string(b64_data, create_key("GameMainConfig"))
obj = json.loads(json_str)
encrypted_url = obj[ciphers["ServerInfoDataUrl"]]
url = convert_string(encrypted_url, create_key("ServerInfoDataUrl"))
return url


if __name__ == "__main__":
for f in os.listdir(os.getcwd()):
if url_obj := UnityUtils.search_unity_pack(f, ["TextAsset"], ["GameMainConfig"], True):
url = decode_server_url(url_obj[0].read().m_Script.encode("utf-8", "surrogateescape"))
print(url)
break
  1. 脚本执行后打印: https://yostar-serverinfo.bluearchiveyostar.com/r79_56_swwin27e1u6czsvrxshi.json
  2. 访问上一步打印的地址得到json如下, 其中1.56下的AddressablesCatalogUrlRoot对应的值便是最新的资源服务器的地址https://prod-clientpatch.bluearchiveyostar.com/r79_zqy5uxhd13gi68vaatbd
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
"ConnectionGroups": [
{
"Name": "Prod-Audit",
"ManagementDataUrl": "https://prod-noticeindex.bluearchiveyostar.com/prod/index.json",
"IsProductionAddressables": true,
"ApiUrl": "https://prod-game.bluearchiveyostar.com:5000/api/",
"GatewayUrl": "https://prod-gateway.bluearchiveyostar.com:5100/api/",
"KibanaLogUrl": "https://prod-logcollector.bluearchiveyostar.com:5300",
"ProhibitedWordBlackListUri": "https://prod-notice.bluearchiveyostar.com/prod/ProhibitedWord/blacklist.csv",
"ProhibitedWordWhiteListUri": "https://prod-notice.bluearchiveyostar.com/prod/ProhibitedWord/whitelist.csv",
"CustomerServiceUrl": "https://bluearchive.jp/contact-1-hint",
"OverrideConnectionGroups": [
{
"Name": "1.0",
"AddressablesCatalogUrlRoot": "https://prod-clientpatch.bluearchiveyostar.com/m28_1_0_1_mashiro3"
},
{
"Name": "1.56",
"AddressablesCatalogUrlRoot": "https://prod-clientpatch.bluearchiveyostar.com/r79_zqy5uxhd13gi68vaatbd"
}
],
"BundleVersion": "li3pmyogha"
}
]
}

参考
